Using Jupyter notebooks

Some practical exercises in this course are delivered as Jupyter notebooks. This page is for learners who are new to Python, JupyterLab, or .ipynb notebook files.

What you are starting

JupyterLab is a browser-based workspace for writing notes, running code, and viewing results. A notebook is a document made from cells:

• Markdown cells contain text, equations, links, and instructions.

• Code cells contain Python commands that can be run interactively.

• A kernel is the Python process that runs the code cells.

• A Python environment contains the packages available to the kernel.

Important

For the mesh tutorial practical, you must use the kernel that matches the environment from the setup steps:

Met Office

• Ensure that you use module load scitools

• Use scitools as your kernel.

Monsoon

• Ensure that you use module load scitools

• Use scitools as your kernel.

Other

Build your own environment Python (lfric-mesh), and use that kernel.

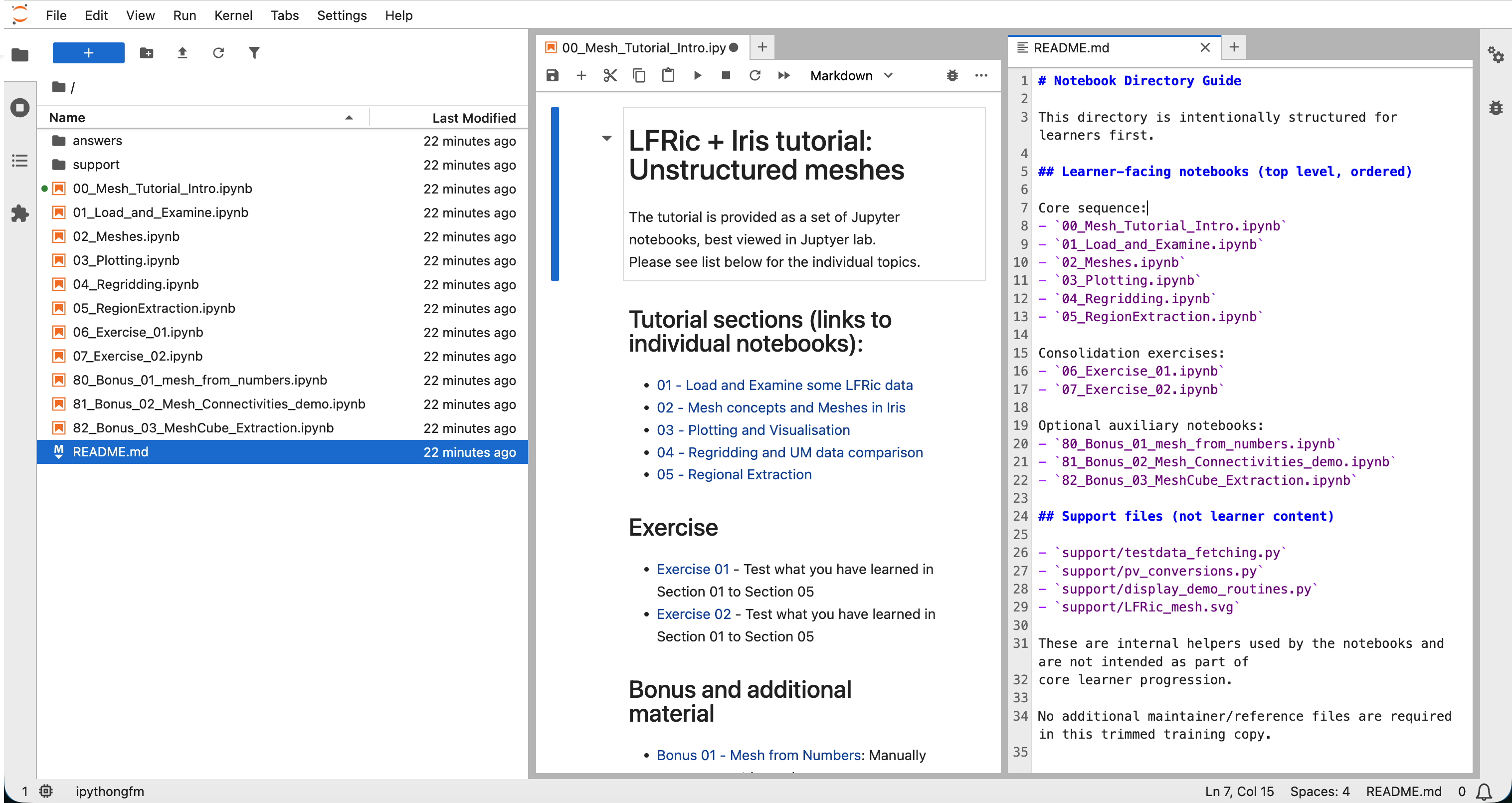

Fig. 39 JupyterLab workspace showing the menu bar, file browser, notebook area, and open panels.

Before launching JupyterLab

Before starting a notebook, make sure you have:

1. A local copy of the training repository.

2. A Python environment with the notebook dependencies available.

3. A Jupyter kernel for that environment.

For the mesh tutorial, the setup commands are given in the practical using unstructured data. Complete those setup steps once before launching JupyterLab.

Launching the mesh tutorial notebooks

Open a terminal and move to the root of the training repository. If your repository is somewhere else, replace the path in the first command with your local path:

cd /path/to/LFRic-Atmosphere-Training

Make the tutorial environment available:

Met Office

module load scitools

Monsoon

See also

For help choosing the correct Monsoon3 service and finding the official setup guidance, see Using Monsoon3.

module load scitools

Other

Note

“Other” means your own machine, or a system run by another institution. You provide the environment yourself. See Choosing your platform.

Use your preferred environment manager to create an environment and install these tools. A typical workflow might be:

conda create -n my_env python
conda activate my_env
conda install -c conda-forge iris dask numpy matplotlib

See also

Iris documentation

Move into the notebook directory:

cd notebooks/iris-mesh-tutorial/notebooks

Start JupyterLab:

jupyter lab

JupyterLab normally opens in a browser tab automatically. If it does not, copy the local URL printed in the terminal into your browser. It will usually start with http://localhost: and may include a token= value. Treat that URL as private while the notebook server is running.

Important

Start JupyterLab from notebooks/iris-mesh-tutorial/notebooks when working through the mesh tutorial. Several notebooks use paths relative to this directory.

Opening and running a notebook

1. In the JupyterLab file browser, open the first tutorial notebook: 00_Mesh_Tutorial_Intro.ipynb.

2. If JupyterLab asks you to select a kernel, choose the one for your environment: the default Python 3 kernel under scitools, or Python (lfric-mesh) for a conda environment.

3. If the notebook has already opened with a different kernel, use Kernel -> Change Kernel to switch.

4. Read each Markdown cell, then run the next code cell.

5. To run a cell, click in it and press Shift + Enter. You can also use the run button in the notebook toolbar.

6. Wait for a cell to finish before running the next one. A cell marked [*] is still running. A finished code cell is given a number such as [3].

7. Save your work with File -> Save Notebook or Ctrl + S.

Run notebooks from top to bottom unless the instructions say otherwise. Code cells can depend on variables created by earlier cells, so running cells out of order can produce confusing errors.

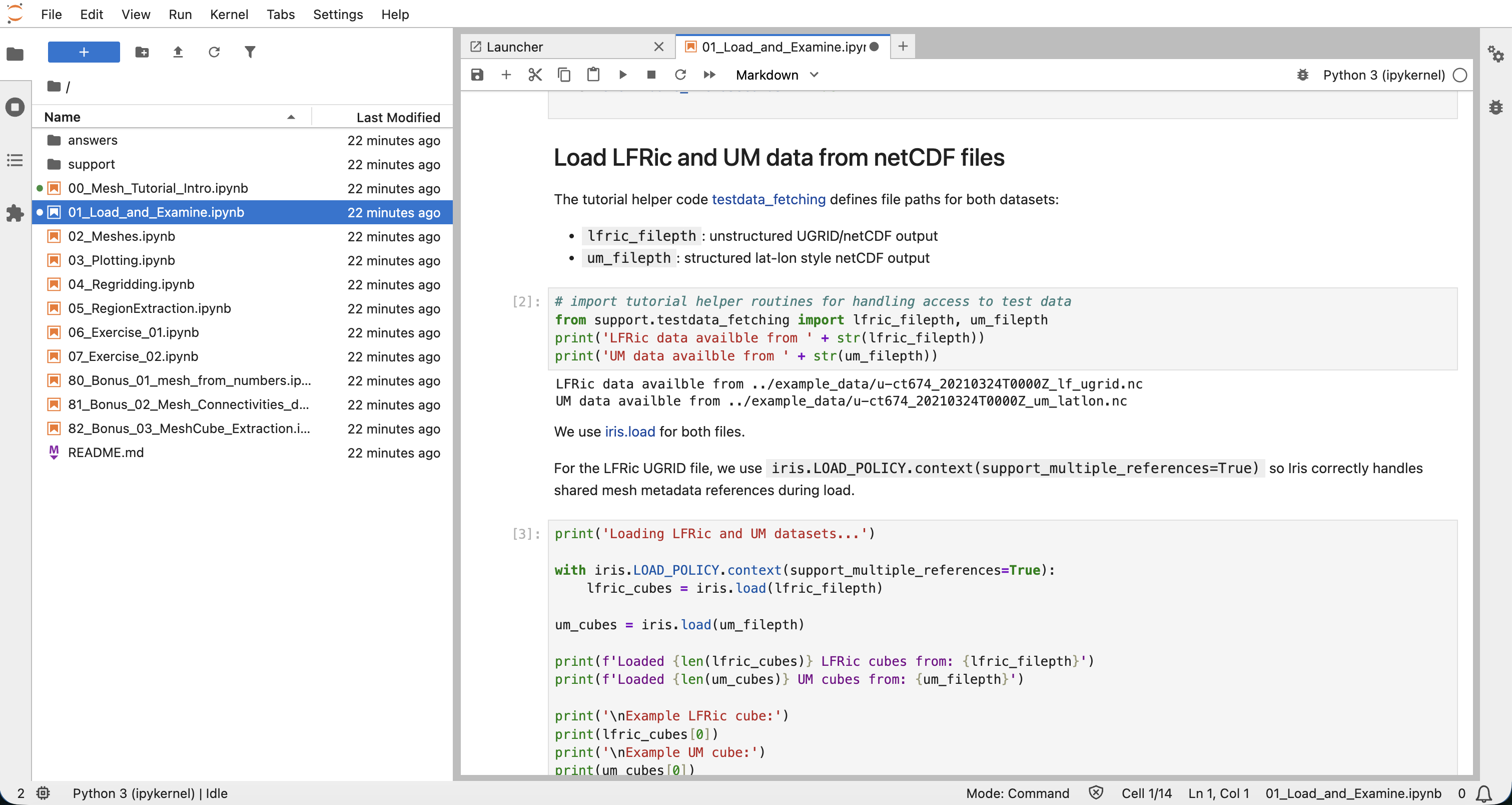

Fig. 40 Notebook view showing Markdown text, code cells, outputs, the toolbar, the selected kernel, and the notebook status bar.

Restarting and stopping

Use these actions when a notebook gets into an unexpected state:

• Kernel -> Interrupt Kernel stops the currently running cell.

• Kernel -> Restart Kernel clears Python variables and starts the kernel again.

• Run -> Run All Cells reruns the notebook from the top after a restart.

• Kernel -> Shut Down Kernel stops the Python process for the active notebook.

When you have finished:

1. Save any notebooks you changed.

2. Shut down any running kernels you no longer need.

3. Return to the terminal where jupyter lab is running.

4. Press Ctrl + C to stop the JupyterLab server.

5. Close the browser tab.

Closing the browser tab alone does not necessarily stop the server or the notebook kernels.

Common problems

Symptom	What to try
jupyter: command not found or jupyter lab is not recognised.	Make the environment available first, with module load scitools or conda activate lfric-mesh. If it still fails, return to the setup commands in the practical using unstructured data.
The Python (lfric-mesh) kernel is missing.	Activate the environment and rerun the kernel registration command from the practical using unstructured data: python -m ipykernel install --user --name lfric-mesh --display-name "Python (lfric-mesh)". This applies to the conda route only.
A notebook opens, but import statements fail.	Check that the selected kernel matches the environment you set up. Package import errors often mean the notebook is using a different Python environment.
Opening a 3D view crashes the kernel.	See the OpenGL note in the practical using unstructured data. Set MESA_GL_VERSION_OVERRIDE=3.3 before starting JupyterLab.
A notebook cannot find data files or support modules.	Stop JupyterLab and restart it from notebooks/iris-mesh-tutorial/notebooks.
A cell is stuck on [*].	Wait a little longer for expensive cells. If it is clearly stuck, use Kernel -> Interrupt Kernel. If the notebook is then inconsistent, use Kernel -> Restart Kernel followed by Run -> Run All Cells.
The browser says it cannot connect to the notebook.	Check that the terminal running jupyter lab is still open. If the server stopped, start it again and use the new local URL.
