Spatial difference plot

Generate spatial map of a 2D field difference (regional data example).

References

General functionality is provided using CSET recipe surface_spatial_difference.yaml

The following CSET operators are used:

• CSET.operators.read.read_cubes

• CSET.operators.misc.difference

• CSET.operators.plot.spatial_pcolormesh_plot or CSET.operators.plot.spatial_contour_plot.

Using cset bake on the command line

• Access recipe file using cset cookbook.

• Set required recipe inputs on command line.

Example to generate full-domain spatial difference maps of temperature_at_screen_level between 2 input model files for all output times:

cset cookbook surface_spatial_difference.yaml
cset -v bake -i "/path/to/input/data_1" "/path/to/input/data_2" \
             -o "./output_path" \
             -r surface_spatial_difference.yaml \
             --VARNAME="temperature_at_screen_level" \
             --BASE_MODEL="my_model_1_label" \
             --OTHER_MODEL="my_model_2_label" \
             --METHOD="SEQ" \
             --SUBAREA_TYPE='None' --SUBAREA_EXTENT='None' --SUBAREA_NAME=''

Configuring the cset_workflow

• Update workflow configuration settings via rose edit GUI or in rose-suite.conf file.

• Complete General setup options and Cycling and Model options details - see Configure the workflow.

• Set required configuration options on Diagnostics / Surface (2D) fields panel:

  SURFACE_FIELDS = ["temperature_at_screen_level", ...]
  SPATIAL_DIFFERENCE_SURFACE_FIELD = True


Example python code

from CSET import sample_data_path
from CSET.operators import misc, plot, read

# Set path to input data
filename1 = sample_data_path("air_temperature_1.nc")
filename2 = sample_data_path("air_temperature_2.nc")

# Read selected variable(s) of interest
cubes = read.read_cubes([filename1, filename2], ["temperature_at_screen_level"])

# Compute difference between input cubes
diff = misc.difference(cubes)

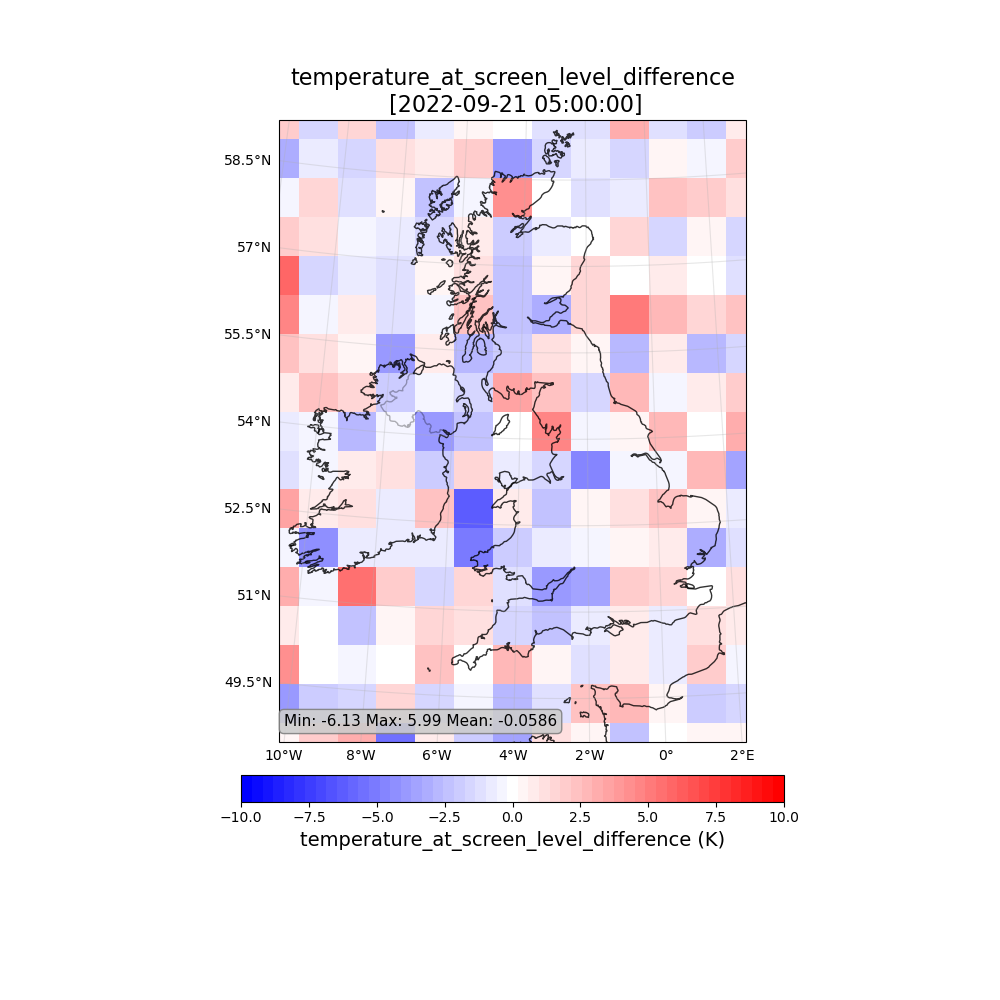

# Plot single time using spatial_pcolormesh_plot
plot.spatial_pcolormesh_plot(diff[-1])
