Select lat-lon subarea

Generate spatial map of a 2D field over selected sub-region of data.

References

General functionality is provided using CSET recipe generic_surface_spatial_plot_sequence.yaml

The following CSET operators are used:

• CSET.operators.read.read_cubes

• CSET.operators.plot.spatial_pcolormesh_plot or CSET.operators.plot.spatial_contour_plot.

Using cset bake on the command line

• See Regional spatial plot or Global spatial plot for general settings.

• Set SUBAREA_TYPE to realworld or modelrelative and SUBAREA_EXTENT to select edge trim widths [lower_lat, upper_lat, lower_lon, upper_lon].

• Use SUBAREA_NAME to add a plot label if required, or leave blank.

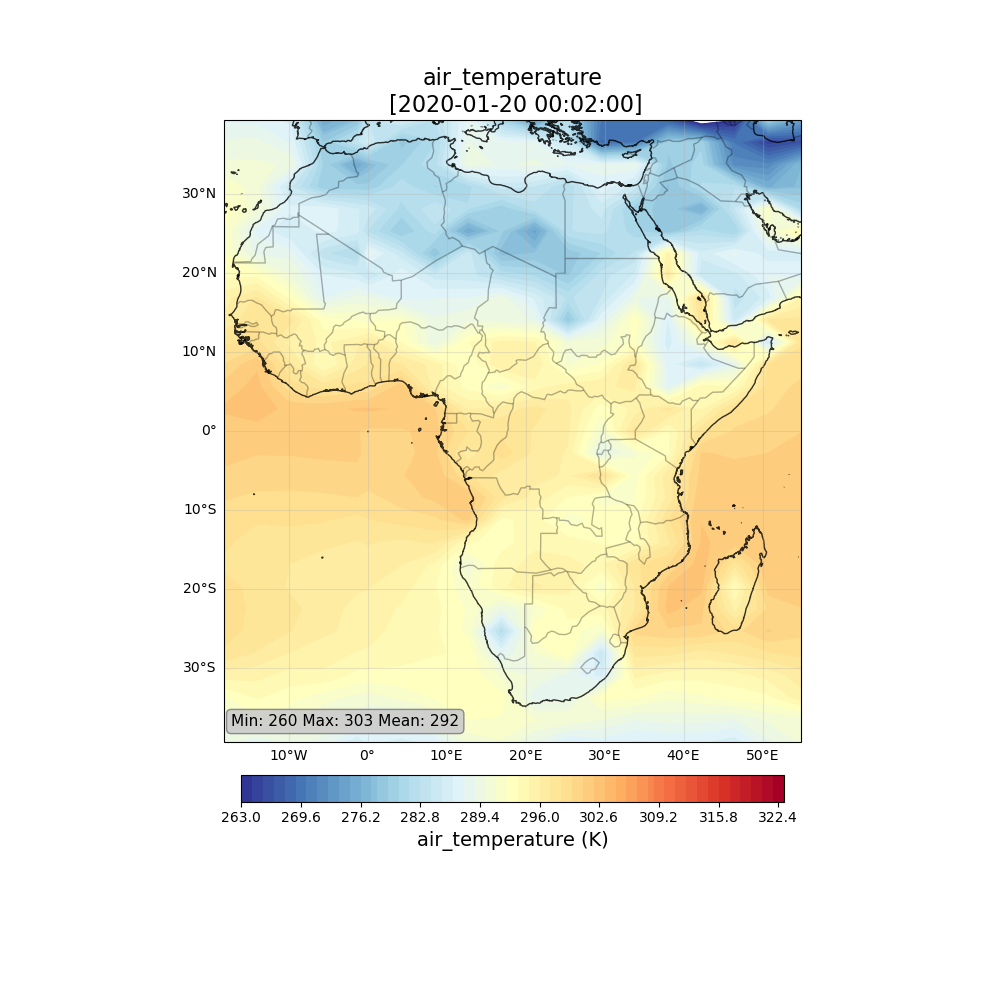

Example to generate spatial maps of temperature_at_screen_level for a selected sub-area all output times:

cset cookbook generic_surface_spatial_plot_sequence.yaml
cset -v bake -i "/path/to/input/data" -o "./output_path" \
             -r generic_surface_spatial_plot_sequence.yaml \
             --VARNAME="temperature_at_screen_level" \
             --MODEL_NAME="my_model_label" \
             --METHOD="SEQ" \
             --SUBAREA_TYPE='realworld' --SUBAREA_EXTENT='[-40.0, 40.0, -20.0, 55.0]' \
             --SUBAREA_NAME='Africa'

Configuring the cset_workflow

• Update workflow configuration settings via rose edit GUI or in rose-suite.conf file.

• Complete General setup options and Cycling and Model options details - see Configure the workflow.

• Set SELECT_SUBAREA to True, choose SUBAREA_TYPE and set SUBAREA_EXTENT and SUBAREA_NAME on panel Cycling and Model options.

• Set other required configuration options on Diagnostics / Surface (2D) fields panel:

  SELECT_SUBAREA = True
  SPATIAL_SURFACE_FIELD = True
  SUBAREA_TYPE = 'realworld'
  SUBAREA_EXTENT = [-40.0, 40.0, -20.0, 55.0]
  SUBAREA_NAME = 'Africa'
  SURFACE_FIELDS = ["temperature_at_screen_level", ...]


Example python code

from CSET import sample_data_path
from CSET.operators import plot, read

# Set path to input data
filename = sample_data_path("air_temperature_global.nc")

# Read selected variable(s) of interest
cube = read.read_cube(
    filename,
    ["temperature_at_screen_level"],
    subarea_type="realworld",
    subarea_extent=[-40.0, 40.0, -20.0, 55.0],
)

# Plot single time using spatial_contour_plot
plot.spatial_contour_plot(cube)
