Histogram plot

Generate histogram of region-averaged field.

References

General functionality is provided using CSET recipe generic_surface_histogram_series.yaml

The following CSET operators are used:

• CSET.operators.read.read_cubes

• CSET.operators.plot.plot_histogram_series.

Using cset bake on the command line

• Access recipe file using cset cookbook.

• Set required recipe inputs on command line.

Example to generate histogram plot of temperature_at_screen_level for any number of input models:

cset cookbook generic_surface_histogram_series.yaml
cset -v bake -i "/path/to/input/data1" "..." "/path/to/input/dataN" \
             -o "./output_path" \
             -r generic_surface_histogram_series.yaml \
             --VARNAME="temperature_at_screen_level" \
             --MODEL_NAME="['my_model_label1', '...', 'my_model_labelN']" \
             --SEQUENCE="realization" \
             --SUBAREA_TYPE='None' --SUBAREA_EXTENT='None' --SUBAREA_NAME=''

Configuring the cset_workflow

• Update workflow configuration settings via rose edit GUI or in rose-suite.conf file.

• Complete General setup options and Cycling and Model options details - see Configure the workflow.

• Set required configuration options on Diagnostics / Surface (2D) fields panel.

• Set HISTOGRAM_SURFACE_FIELD_SEQUENCE=False to generate one histogram for all times.

• Set HISTOGRAM_SURFACE_FIELD_SEQUENCE=True to generate a separate histogram for each output time.

HISTOGRAM_SURFACE_FIELD = True
HISTOGRAM_SURFACE_FIELD_SEQUENCE = False
SURFACE_FIELDS = ["temperature_at_screen_level", ...]

Example python code

from CSET import sample_data_path
from CSET.operators import plot, read

# Set paths to input data
filename1 = sample_data_path("air_temperature_1.nc")
filename2 = sample_data_path("air_temperature_2.nc")

# Read selected variable(s) of interest for 2 models
cubes = read.read_cubes(
    [filename1, filename2],
    ["temperature_at_screen_level"],
    model_names=["model_fcst_1", "model_fcst_2"],
)

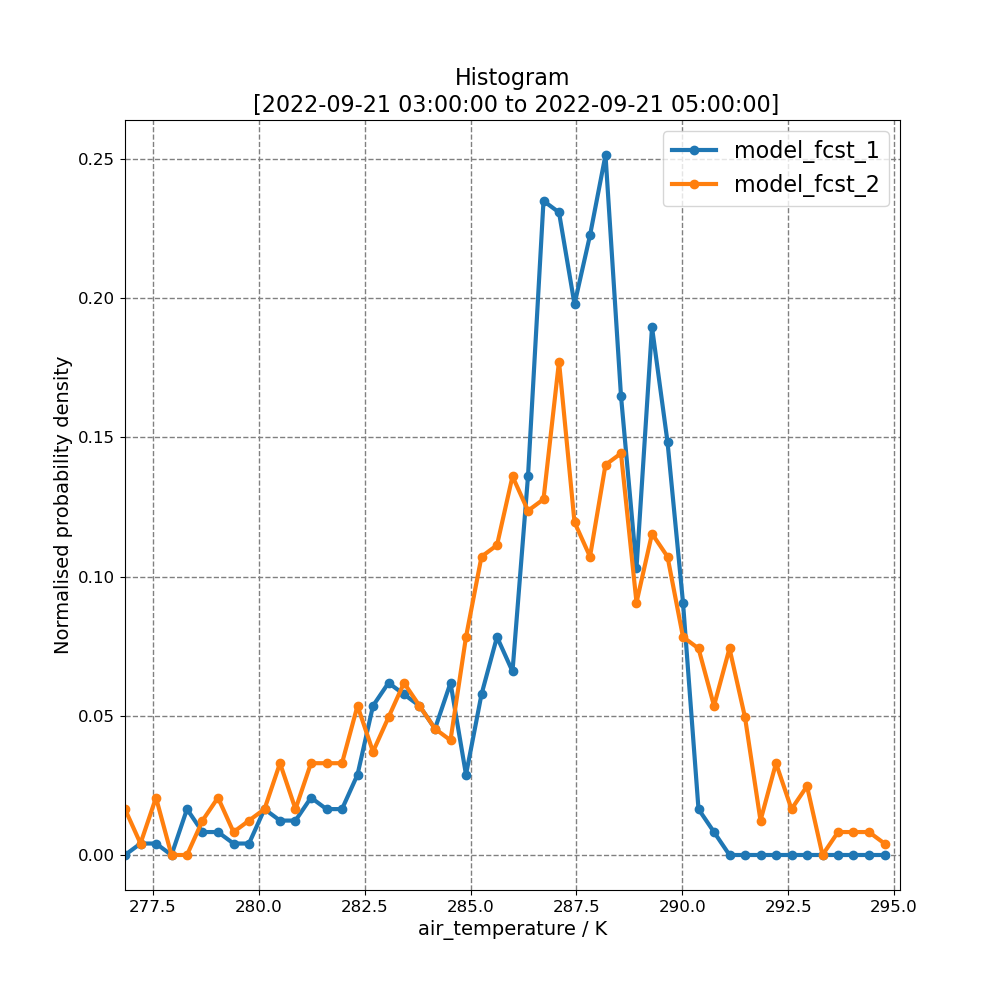

# Plot domain histogram using plot_histogram_series
plot.plot_histogram_series(cubes, sequence_coordinate="realization")
