Multi-layer spatial plots

Generate spatial map with multiple layers of 2D fields.

References

General functionality is provided using the following CSET recipes:

• multi_surface_spatial_plot_sequence.yaml for 3-layer plots (base layer, masked overlay layer, contour layer)

• multi_overlay_spatial_plot_sequence.yaml for base-layer pcolormesh with masked overlay layer pcolormesh

• multi_contour_spatial_plot_sequence.yaml for base-layer pcolormesh with contour layer

The following CSET operators are used:

• CSET.operators.read.read_cubes

• CSET.operators.filters.generate_mask

• CSET.operators.filters.apply_mask

• CSET.operators.plot.spatial_multi_pcolormesh_plot.

Using cset bake on the command line

• Access recipe file using cset cookbook.

• Set required recipe inputs on command line.

Example to generate 3-layer full-domain spatial maps of temperature_at_screen_level, with masked overlay of microphysical_surface_rainfall_rate showing only values greater than or equal to 0.05, and additional contour layer of air_pressure_at_sea_level for all output times:

cset cookbook multi_surface_spatial_plot_sequence.yaml
cset -v bake -i "/path/to/input/data" -o "./output_path" \
             -r multi_surface_spatial_plot_sequence.yaml \
             --VARNAME_BASE="temperature_at_screen_level" \
             --VARNAME_OVER="surface_microphysical_rainfall_rate" \
             --OVERLAY_MASK_CONDITION="ge" \
             --OVERLAY_MASK_VALUE="0.05" \
             --VARNAME_CONTOUR="air_pressure_at_mean_sea_level" \
             --MODEL_NAME="my_model_label" \
             --METHOD="SEQ" \
             --SUBAREA_TYPE='None' --SUBAREA_EXTENT='None' --SUBAREA_NAME='None'

Similar 2-layer (base, overlay) examples can be generated using recipe multi_overlay_spatial_plot_sequence.yaml for outputs with only VARNAME_BASE and VARNAME_OVER shown.

Alternatively, 2-layer (base, contour) examples can be generated using recipe multi_contour_spatial_plot_sequence.yaml for outputs with only VARNAME_BASE and VARNAME_CONTOUR shown.

Configuring the cset_workflow

• Update workflow configuration settings via rose edit GUI or in rose-suite.conf file.

• Complete General setup options and Cycling and Model options details - see Configure the workflow.

• Set required configuration options on Diagnostics / Multi-variable plots panel

• A list of different variables can be specified as python lists to generate multiple different output plot combinations using the same workflow run.

• If all variables are set, 3-layer plots are generated. If either OVERLAY or CONTOUR variables are not set, the relevant 2-layer outputs are generated.

SPATIAL_MULTI_VARIABLE = True
MULTI_BASE_FIELDS = ["temperature_at_screen_level", ...]
MULTI_OVERLAY_FIELDS = ["surface_microphysical_rainfall_rate", ...]
MULTI_OVERLAY_MASK_CONDITIONS = ["ge", ...]
MULTI_OVERLAY_MASK_VALUES = ["0.05", ...]
MULTI_CONTOUR_FIELDS = ["air_pressure_at_mean_sea_level", ...]
SPATIAL_MULTI_FIELD_METHOD = ""

Example python code

from CSET import sample_data_path
from CSET.operators import plot, read

# Set path to input data
filename = sample_data_path("air_temperature_global.nc")

# Read selected variable(s) of interest
# Select sub-region to better illustrate output plot
cube = read.read_cube(
    filename,
    ["temperature_at_screen_level"],
    subarea_type="realworld",
    subarea_extent=[-40.0, 40.0, -120.0, -55.0],
)

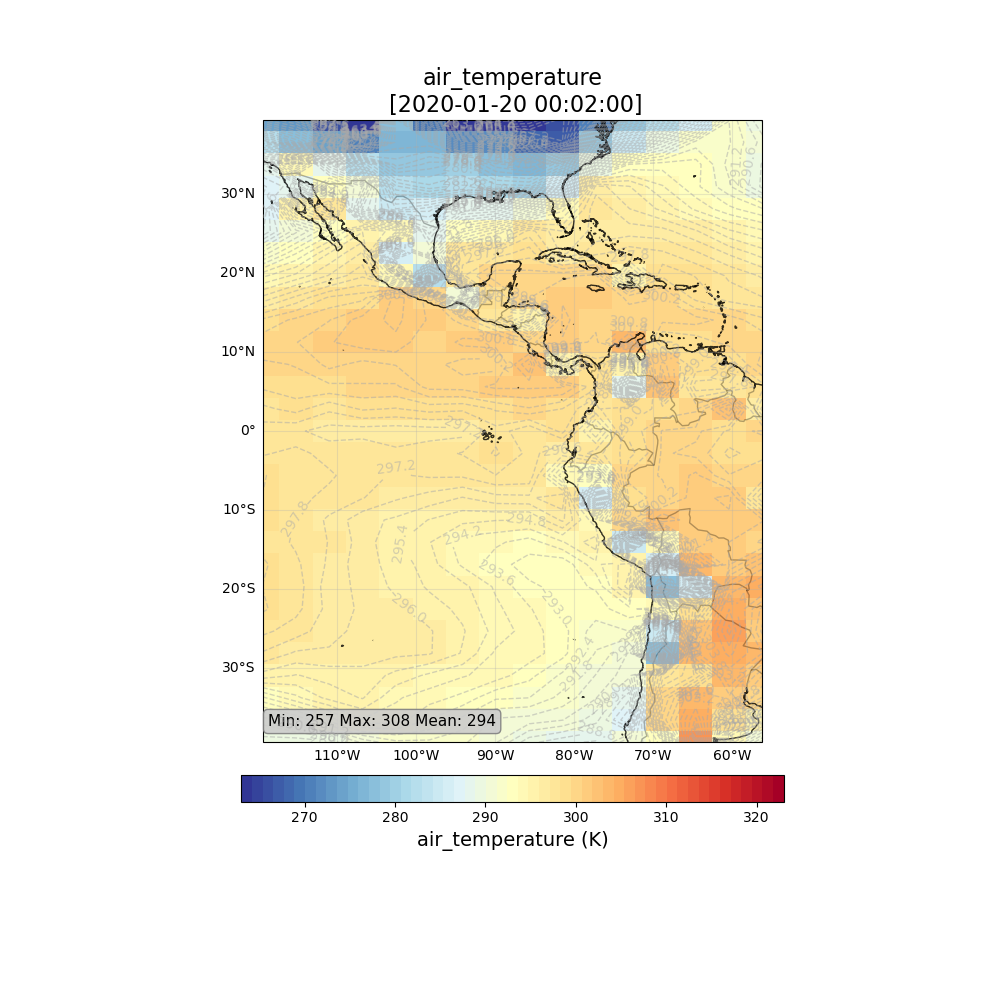

# Plot single time using spatial_multi_pcolormesh_plot
# Here only contours of cube are shown for simplest illustration
# See operator documentation to generate more complex multi-layer examples
plot.spatial_multi_pcolormesh_plot(cube, contour_cube=cube)
