Monsoon

This assessment is available via AutoAssess.

Overview

This diagnostic analyses the South and East Asian monsoon.

Available recipes and diagnostics

The assessment code is available from the AutoAssess repository.

User settings in recipe

There are no user settings for this recipe

Variables

Fixed Variables:

  • sftlf (atmos, fixed, longitude latitude)

Daily Mean Variables:

  • pr (atmos, daily mean, longitude latitude time)

  • ua (850) (atmos, daily mean, longitude latitude time)

  • va (850) (atmos, daily mean, longitude latitude time)

Monthly Mean Variables:

  • pr (atmos, monthly mean, longitude latitude time)

  • ua (850, 200) (atmos, monthly mean, longitude latitude plev time)

  • va (850, 200) (atmos, monthly mean, longitude latitude plev time)

  • psl (atmos, monthly mean, longitude latitude time)

  • tas (atmos, monthly mean, longitude latitude time)

  • uas (atmos, monthly mean, longitude latitude time)

  • “Column integrated u*q” (atmos, monthly mean, longitude latitude time)

Seasonal Mean Variables:

  • pr (atmos, seasonal mean, longitude latitude time)

  • ua (850, 300, 200) (atmos, seasonal mean, longitude latitude plev time)

  • va (850, 300, 200) (atmos, seasonal mean, longitude latitude plev time)

  • zg (850, 500) (atmos, seasonal mean, longitude latitude plev time)

  • psl (atmos, seasonal mean, longitude latitude time)

  • tas (atmos, seasonal mean, longitude latitude time)

  • uas (atmos, seasonal mean, longitude latitude time)

Observations and reformat scripts

  • ECMWF Reanalysis (ERA-Interim?) (psl, ua, va, uas, zg)

  • Climate Research Unit (CRU-TS 3.23? tmp) (tas)

  • GPCP (vn2.2?) (pr)

References

There is no reference for this recipe.

Example plots

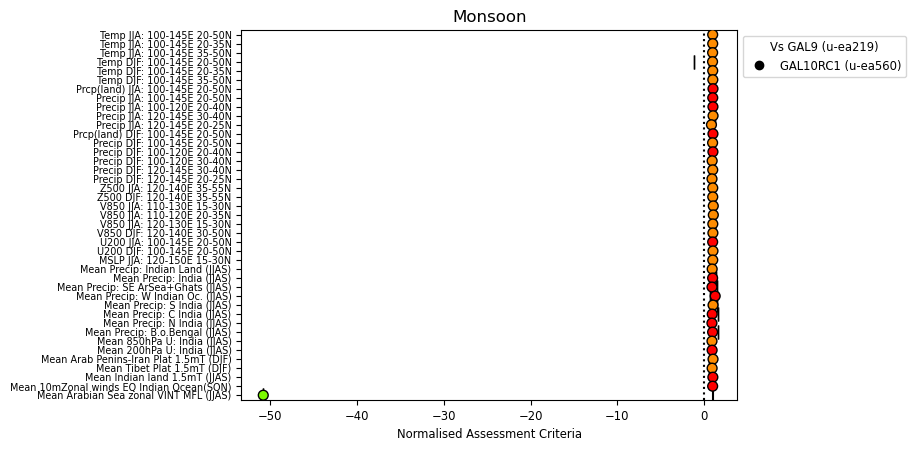

NAC plot for Monsoon area

This is the summary overview of metrics from the Monsoon assessment.

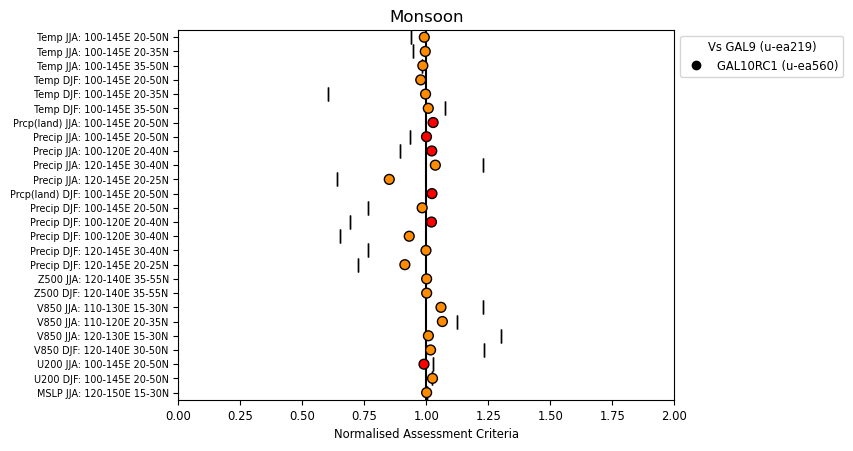

East Asian monsoon metrics

These are the East Asian Monsoon metrics.

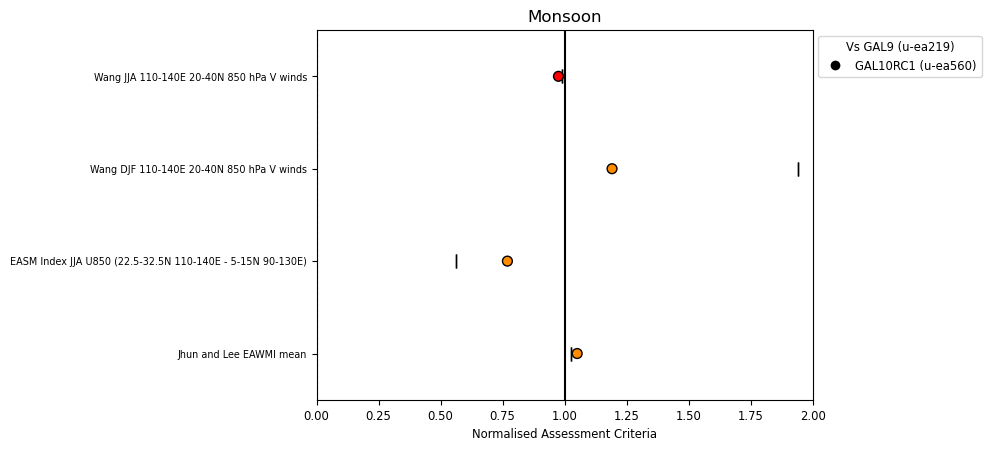

East Asian monsoon indices

These are the East Asian Monsoon indices.

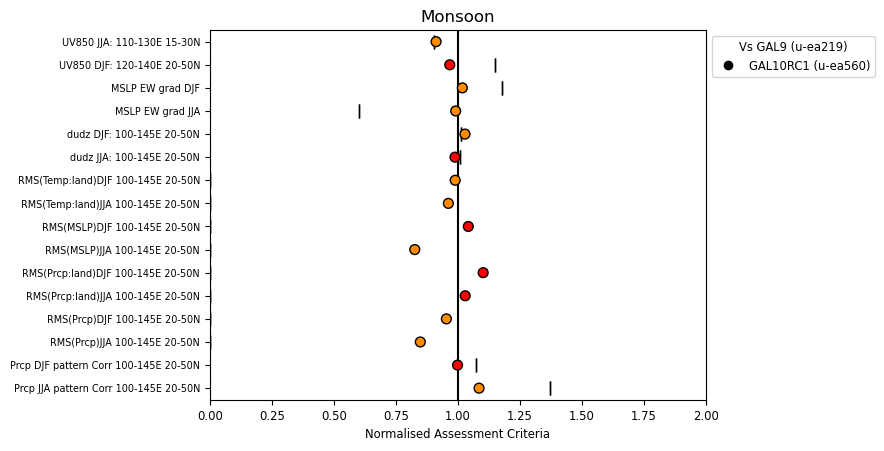

Other miscellaneous East Asian Monsoon metrics

These are other miscellaneous East Asian Monsoon metrics.

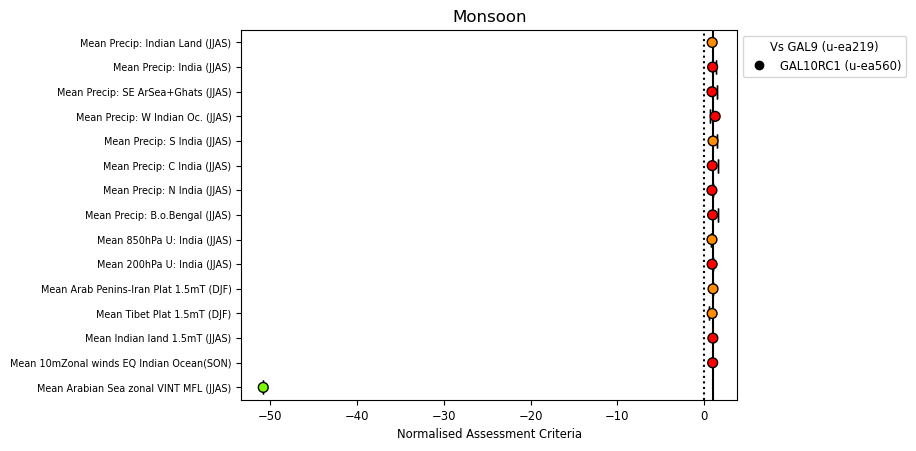

South Asian monsoon metrics

These are the South Asian Monsoon metrics.

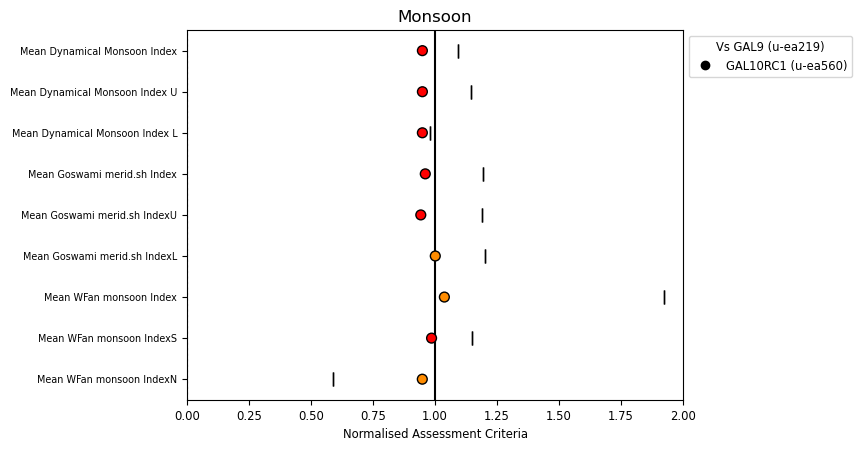

South Asian monsoon indices

These are the South Asian Monsoon indices.

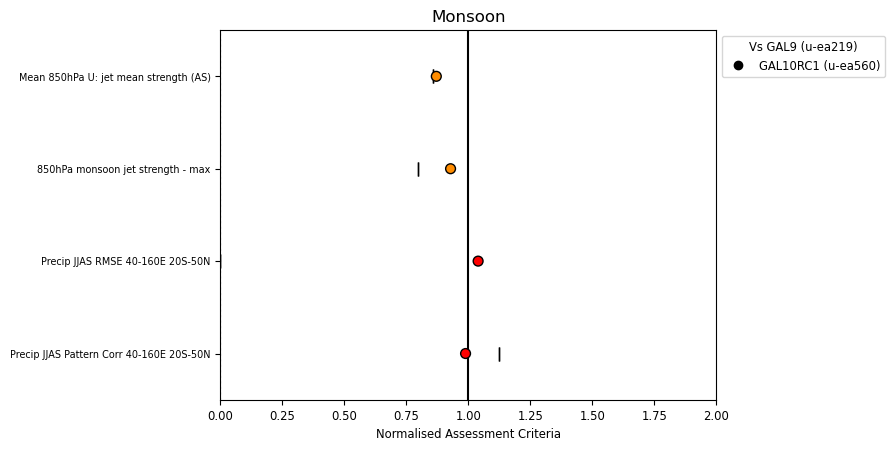

Other miscellaneous South Asian Monsoon metrics

These are other miscellaneous South Asian Monsoon metrics.
