Doxygen Usage Guidelines#
The tool used for API documentation is “Doxygen.” Although designed for use with C++ it does offer some support for Fortran. This page explains how it is used in the LFRic project.
An Introduction to API Documentation#
Before we start considering specific recommendations it is important to understand what API documentation is for.
Doxygen will check every source file and build up a web site of API documentation. This presents each public entity (types, parameters, procedures) and describes what it is for and how to use it.
The documentation is used by people who want to take advantage of the existing code which implements some functionality they desire. They have not read the code, they do not know how it works, nor should they have to. Everything they need to know to make use of it should be in the API document.
Generally speaking you should not put implementation details in the API document. The user of your function doesn’t care that you’ve stored data in a sliding heap. All they want to know is what they put in and what they get out.
Because we deal with mathematical models it may be appropriate to include the equation that a particular function implements if that is the purpose of the function.
Using Doxygen#
API documentation is identified by the use of special comment blocks. Entities which may be documented are:
Program units
Public types
Public type-bound parameters
Public type-bound variables
Public type-bound procedures
Public parameters
Public variables
Public procedures
You will notice that all the documentable entities are public. This is the nature of API documentation, if it is private then it is not part of the API. You might find it useful to document private entities in the same way for consistency but must bear in mind that although it looks the same it is internal developer documentation. That is, documentation for the people who develop a project, not those who use it.
Documentation Comment Blocks#
The special comment blocks are placed before the entities they refer to and are
signified by !>. Documentation which spans multiple lines should be
continued with either repeated uses of !> or !!.
Variables and parameters are a special case where it is sometimes neater to
place the documentation immediately following their declaration. This is
supported with the !< special comment.
Structural Markup#
Doxygen implements a simple mark-up language to denote meaning in your special
comments. Tags in this markup are preceded by @ or \.
There is a rich selection of structural markup tags for a wide variety of uses. As is often the case there is a much smaller subset which get frequent use.
Descriptions#
The first tag to consider is \brief. This is used to indicate that the
following phrase should be used when describing the entity in lists. As the
name suggests it is a brief description and will tend to appear in
conjunction with the entity’s name.
If the @brief tag is not provided then the first sentence of the comment
block will be used.
Any other text in the comment is considered part of an extended description. This will be used as part of the canonical definition of the entity.
Every entity which may be given a brief description must have one but it is not necessary to provide an extended description.
Procedures#
There are 2 tags which are essential when documenting procedures. These are
\param and \return. They are used for documenting the values passed
into and returned by the procedure.
The first takes the following form:
\param[(in|out|in,out)] <argument name> <description>
Although Fortran provides the “direction” information with the intent
attribute Doxygen is currently unable to take advantage of it so you must
specify it by hand.
Functions may make use of this tag:
\return <description>
This is used to describe the value returned from the function.
Deprecation#
You may follow the \deprecated tag with an explanation as to why the entity
is deprecated, what should be used instead and how long continued support may
be expected.
Formatting Markup#
In addition to the structure markup, “Markdown” markup is supported for embellishing the textual content.
Markdown is a simple method for indicating emphasis, pre-formatted text, lists, tables and suchlike. It is inspired by conventions developed for wikis.
Mathematics#
Doxygen can also handle LaTeX formula descriptions. To include them inline
surround with f$. This should always be the case for @brief
descriptions:
Example of an inline formula: \f$\sqrt{(x_2-x_1)^2+(y_2-y_1)^2}\f$
When you need them centred on the page use \f[ and \f]:

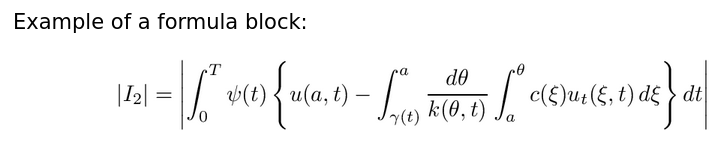

Example of a formula block:
\f[
|I_2|=\left| \int_{0}^T \psi(t)
\left\{
u(a,t)-
\int_{\gamma(t)}^a
\frac{d\theta}{k(\theta,t)}
\int_{a}^\theta c(\xi)u_t(\xi,t)\,d\xi
\right\} dt
\right|
\f]
If you want to show a derivation you can use \f{align}{ and \f}:

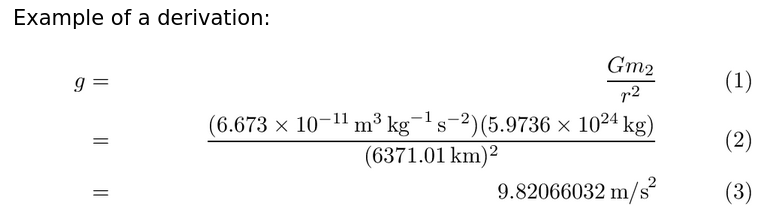

Example of a derivation:
\f{align}{
g &=& \frac{Gm_2}{r^2} \\
&=& \frac{(6.673 \times 10^{-11}\,\mbox{m}^3\,\mbox{kg}^{-1}\,
\mbox{s}^{-2})(5.9736 \times 10^{24}\,\mbox{kg})}{(6371.01\,\mbox{km})^2} \\
&=& 9.82066032\,\mbox{m/s}^2
\f}
Guidelines#
Remember that the documentation generated from these comments is intended to allow someone else to pick up your code and use it without having to examine the actual code. They should provide sufficient information on procedure function and arguments that someone can make use of the module quickly and easily. Clearly there is an assumption that any prospective user has the knowledge to understand what the module does. You do not have to provide a primer on advanced fluid dynamics.
While implementation details are not appropriate, algorithmic details may be. This is particularly true of scientific code which may be implementing a particular method. Make a judgement.
If you are implementing the Newton-Raphson method then it would be entirely appropriate to describe that method in the comments. If you are using the Newton-Raphson method then it should almost certainly not be mentioned as it may be replaced by a different method at a later date.
Don’t just repeat the entity name. This can be hard as well written code gives variables and procedures meaningful names however there is no value to simply repeating that information in the comment. Remember the declaration code will also appear in the final documentation so the reader has that already. Instead embellish with additional information which is not applicable to the label:
real, parameter :: GRAVITY !< Acceleration due to gravity in m/s^2
Phrases may be used in favour to whole sentences where brevity is important. This is especially relevant in brief and argument descriptions.
The Problem With Modules#
Fortran modules are particularly problematic since they are really just scoping units. This means that a module which holds a type has the same purpose as that type and therefore the same description.
In these cases favour the type itself with the majority of the verbiage. The module description is there purely to aid discovery of the type.
The Problem With Type-bound Procedures#
Doxygen was originally written for C++ and modelled after the “Javadoc” tool provided with the Java language. As such it makes assumptions which are not necessarily true for Fortran. The most frustrating of these is around type-bound procedures.
Doxygen pulls the documentation from the type declaration as that is where it gets it for C++. Unfortunately Fortran does not declare the procedure in the type declaration but simply refers to it.
You can document the procedure in the type definition but then the documentation is divorced from the declaration. This makes divergence more likely.
It also does not handle overloaded procedures where there are several different calling signatures for the same procedure name.
For these two reasons we recommend putting the documentation with the procedure implementation even though it won’t show in the generated documentation. The hope is that a future version of Doxygen will fix this problem.
Doxygen Comments Dos and Don’ts#
These guidelines have been heavily informed by some of the original Sun (Now Oracle) documentation.
Directive |
Do |
Don’t |
|---|---|---|
Keep the brief description brief, it is used in summaries |
|
|
Don’t just repeat the label |
|
|
Use 3rd person declarative rather than 2nd person imperative |
|
|
Use a verb phrase for type-bound procedures |
|
|
Use “this” in preference to “the” when referring to the current type |
|
|
Don’t include unnecessary subjects |
|
|
Don’t Doxygen |
|
|
Don’t Doxygen private members. They get ordinary comments. |
|
|
Tests are not part of the API, don’t use Doxygen on them. |
||
PSykal-light code is temporary and should not be Doxygened. |
An Example#
Here is a fanciful example to illustrate some of the points made in the preceding document:
!> @brief Non-academic magical practices.
!!
!! This includes hedge magic and wicca but not shamanism. It also does not cover formalised
!! magical practices such as the Hermetic tradition or Cabalism.
!!
!! @see ritual_magic_mod and formal_magic_mod for alternative traditions.
!!
module simple_magic_mod
!> \brief As practised by the witches of lore.
!>
!> Warts are not required for this.
!>
type hedge_type
...
end hedge_type
!> @brief Practises of the New Age movement.
!>
type wicca_type
...
end wicca_type
contains
!> @brief Invokes a magical effect using the hedge tradition.
!>
!> \param[in] spell Effect sought.
!> \param[in] duration Number of seconds the effect should last for.
!> \param[in,out] tea Hot beverage supply modified by the amount
!> sacrificed to magical workings.
!>
subroutine hedge_cast( this, spell, duration, tea )
implicit none
integer(enum_spell), intent(in) :: spell
integer(seconds), intent(in) :: duration
type(tea_type), intent(in,out) :: tea
...
end subroutine hedge_cast
!> @brief Determines the skill required of the practitioner for a particular
!> magical effect.
!>
!> Only the minimum proficiency requirements are returned. Hubris
!> may prevent a more skilled practitioner from achieving a particular effect.
!>
!> @param[in] spell Effect to gauge the difficulty of.
!> @return Minimum level of ability required for the supplied effect. A zero
!> value indicates that this school can not achieve the effect.
!>
function wicca_proficiency( self, spell ) result( level )
implicit none
integer(enum_spell), intent(in) :: spell
integer :: level
...
end function wicca_proficiency
end module simple_magic_mod
