How To Add A New Mapping Plugin

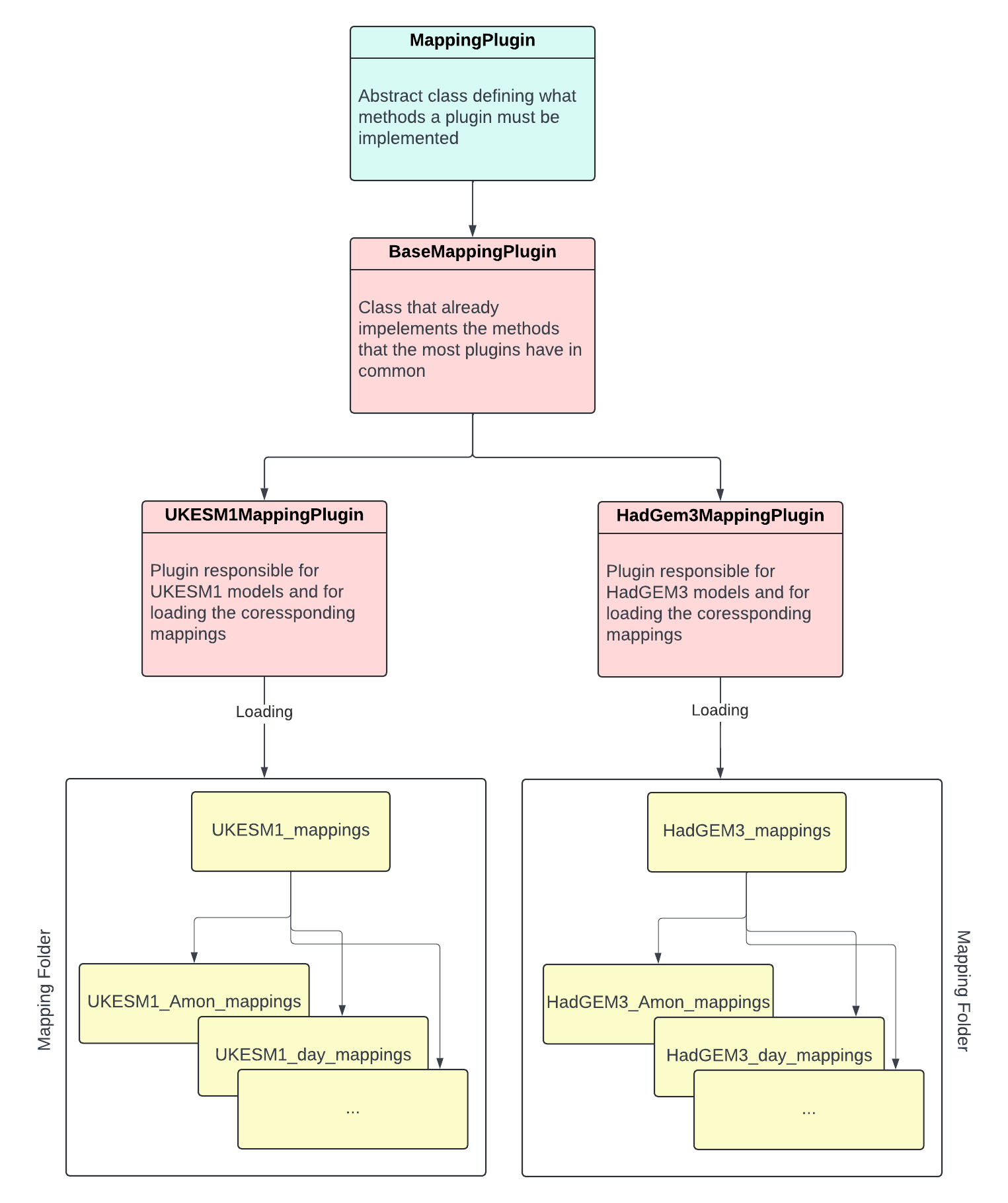

There is an abstract mapping plugin class from which each mapping plugin must inherit. Each abstract function must be implemented of each mapping plugin.

The most mapping plugins can inherit from the base mapping plugin that is a child of the abstract mapping plugin. Most functionality are already implemented by the base mapping plugin except the method that returns the processing functions and the location of the mapping configuration files.

Each mapping plugin has a data folder containing all mapping configuration files and the module that contains the processing functions.

Plugin Overview

General

First, check if the models that should be supported are mostly covered by the functionality that are given by the base mapping plugin. If this is the case, the mapping plugin can be created by inherit from the BaseMappingPlugin, otherwise the mapping plugin must inherit from the MappingPlugin.

The folder and name conventions are in both case the same:

Root folder for mapping plugin named by the model name in lower case (e.g. ukesm1) containing:
A data folder containing:
- All mapping configuration files
- All python modules that are necessary for the mapping plugin, like the processors.py.
The python module named <model>_plugin.py (e.g. ukesm1_plugin.py) containing:
- The class <model>MappingPlugin that inherits from the MappingPlugin or BaseMappingPlugin and implements all necessary functions to support the corresponding model.

To create the folders and files structure, you can paste following content into a bash script file:

   #!/bin/bash

   MODEL="${@:1:1}"

   LOWER_MODEL=$(echo ${MODEL} | tr A-Z- a-z_)

   mkdir -p mip_convert/mip_convert/plugins/${LOWER_MODEL}
   mkdir -p mip_convert/mip_convert/plugins/${LOWER_MODEL}/data
   touch mip_convert/mip_convert/plugins/${LOWER_MODEL}/__init__.py
   touch mip_convert/mip_convert/plugins/${LOWER_MODEL}/${LOWER_MODEL}_plugin.py
   touch mip_convert/mip_convert/plugins/${LOWER_MODEL}/data/__init__.py
   touch mip_convert/mip_convert/plugins/${LOWER_MODEL}/data/processors.py

You can run the script file from your CDDS work directory by using following command:

   sh <name_of_your_script_file> <model_name>

Example

The script file name is create_plugin_structure.sh and the model you like to create the mapping plugin is HadGEM2. Then, you must run following command:

   sh create_plugin_structure.sh HadGEM2

Create Mapping Plugin Using Base Mapping Plugin

Following steps shows how to create a mapping plugin by using the BaseMappingPlugin as parent:

Create a root plugin folder with the name of the model in lower case (e.g. ukesm1).
Create a folder named data in the root plugin folder (e.g. ukesm1/data)
Add all the mapping configuration files into the data folder
Create a python module called processors.py in the data folder. This module should contain all processing functions for CMORisation.
Create a python module called <model>_plugin.py (e.g. ukesm1_plugin.py) in the root plugin folder
In the <model>_plugin.py, implement the mapping plugin named <model>MappingPlugin and inherit from BaseMappingPlugin

In the __init__ method, create the paths to the data directory containing the corresponding mapping configurations:

def __init__(self):
     data_dir = os.path.join(os.path.dirname(os.path.realpath(__file__)), 'data')
     super(<model>MappingPlugin, self).__init__('<model>', data_dir)

     self.input_variables: Dict[str, iris.cube.Cube] = {}

where is the name of the model that should be supported.

Import everything defined in processors.py by doing the wildcard *

Implement the evaluate_expression:

def evaluate_expression(self, expression: Any, input_variables: Dict[str, iris.cube.Cube]) -> iris.cube.Cube:
    self.input_variables = input_variables
    return eval(expression)
